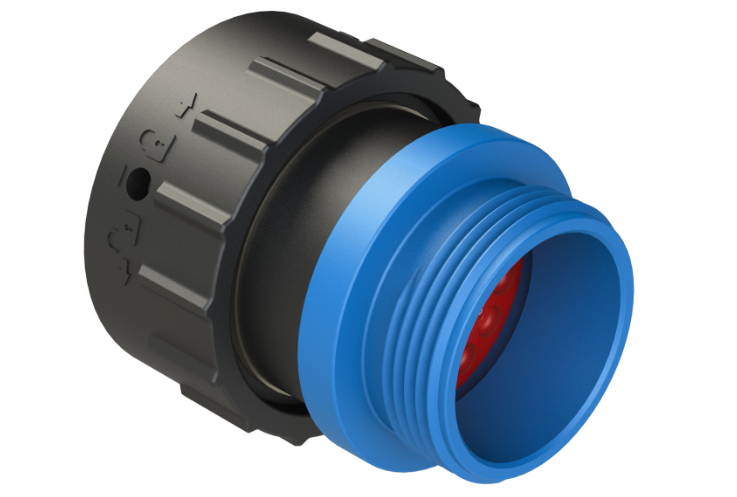

23 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Small Thread Adapter

• Shell Size: 24
• No. of Positions: 23
• Contact Size: 16
• Contact Type (Pin/Socket): Pin
• Contacts Included: No
• Gender: Male
• Wire Range: 14-20 AWG (2.0-0.5mm²)
• Amperage: 13
• Housing Material: Thermoplastic
• Volts: 250 V
• Operating Temperature: -55°C to +125°C
• Color: Black
• IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
• Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
• Insulation Resistance: 1000 Megaohm min @ 25°C
• Seal Material: Silicone Rubber
• Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
• Seal Color: Blue
• Rear Seal Type: Reduced Diameter Seal
• RoHS Compliant (Yes/No): Yes
