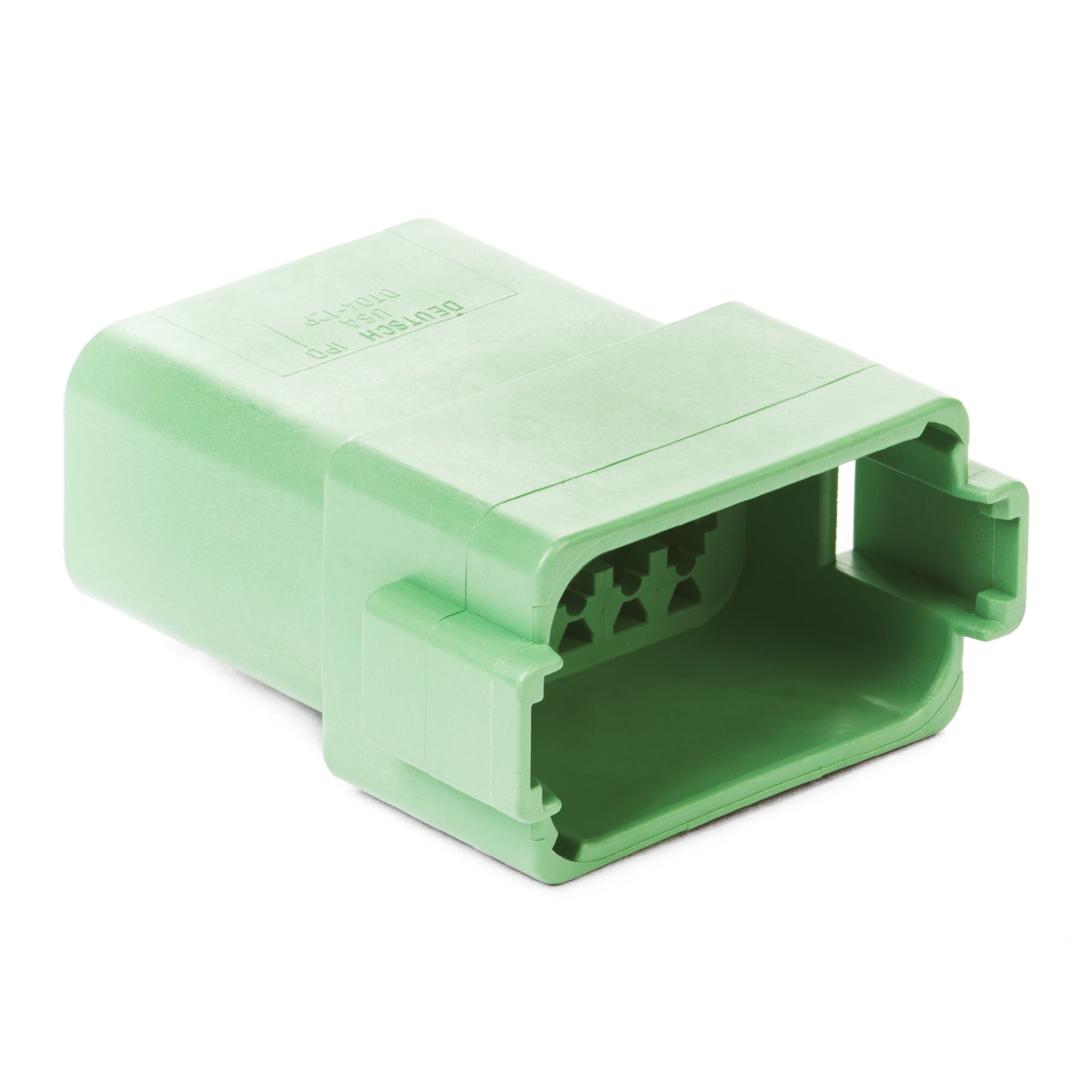

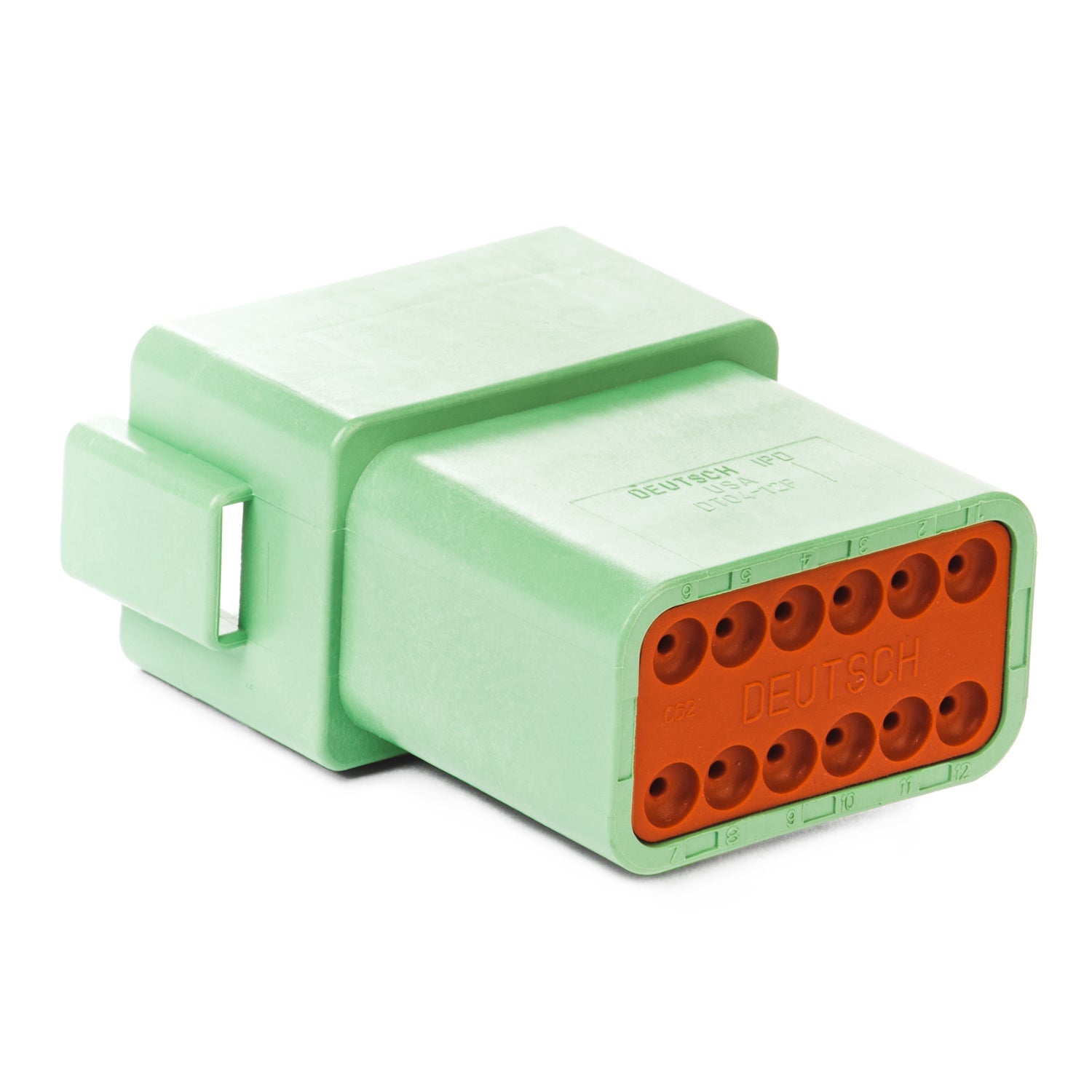

DT04-12PC - DT Series - 12 Pin Receptacle - C Key, Green
Payment Methods
We ship your order within 36 hours.
Various shipping options available.
Guaranteed to choose the right product!
Over 2000 satisfied customers.
Deutsch DT Series
Genuine Deutsch DT series connectors provide superior electrical properties and weather resistance in an attractive, economical and user friendly product. The Deutsch DT connector system is the preferred choice for many top NASCAR, IRL, CCWS, Formula 1, ALMS, Grand American Road Racing Association Racing Teams, and by leading manufactures due to its reliability, serviceability, and common terminal/crimper system.
The Deutsch DT series of connectors are precision engineered with silicone seals to provide positive, weather resistant connections, and to function flawlessly even after hundreds of connect/disconnect cycles.
The wide range of sizes, cavities and available specialized modifications makes the Deutsch DT series perfect for use in automotive and marine wiring harness systems, industrial equipment wiring, and any wiring installation where reliability and serviceability are primary concerns.
| Part Number | DT04-12PC |
| Series | DT Series |
| Wire Size | 14, 16, 18, 20 |
| Required Wedgelock | W12P |
| Keyed | yes, C key |
| Color | Green |
| Material | Plastic |
| Shape | Rectangular |
| Connector Style | Receptacle |
| Cavities | 12 |
| Contact Size | 16 |
| Current Rating | 13 |
| Holds Pin/Socket | Pin |
| Flange/In-line/PCB Mount | In-line |
